Modular POI - MCC Series™
Modular POI - MCC Series™
Microlab’s MCC Series POI is a Passive Modular Carrier Combiner for Neutral Host Small Cell and D-RAN Architectures. It helps combine RAN remote heads for RF distribution. It has been designed to provide up to 4 Operators SISO configurations for 2 sectors OR up to 4 Operator MIMO for 1 sector. The MCC allows many configurations to support multi-carrier and multi-band Neutral Host MIMO or SISO applications. The design has been optimized for low-loss in a modular enclosure that is compatible with standard 19” Racks. It is passively cooled, so no external power or fans are required.
Modular POI - MCC Products
MCC Series Modular POI Catalog
| Modular Filter Cards | ||
| Product No. | Description | |
|---|---|---|
| MCC100-501 | 600-700/850/PCS/AWS/WCS Pentaplexer Card, 4.3-10 | Datasheet |
| MCC100-401 | 600-700/850/PCS/AWS Quadraplexer Card, 4.3-10 | Datasheet |
| MCC100-301 | 600-700/PCS/AWS Triplexer Card, 4.3-10 | Datasheet |
| MCC100-302 | PCS/AWS/BRS Triplexer Card, 4.3-10 | Datasheet |
| MCC200-501 | 600-700/850/PCS/AWS/WCS Pentaplexer Card, 4.3-10, IP67 | Datasheet |
| MCC200-401 | 600-700/850/PCS/AWS Quadraplexer Card, 4.3-10, IP67 | Datasheet |
| MCC200-301 | 600-700/PCS/AWS Triplexer Card, 4.3-10, IP67 | Datasheet |
| MCC200-302 | PCS/AWS/BRS Triplexer Card, 4.3-10, IP67 | Datasheet |
| Modular Hybrid Combiners | ||
| Part | Description | |
|---|---|---|

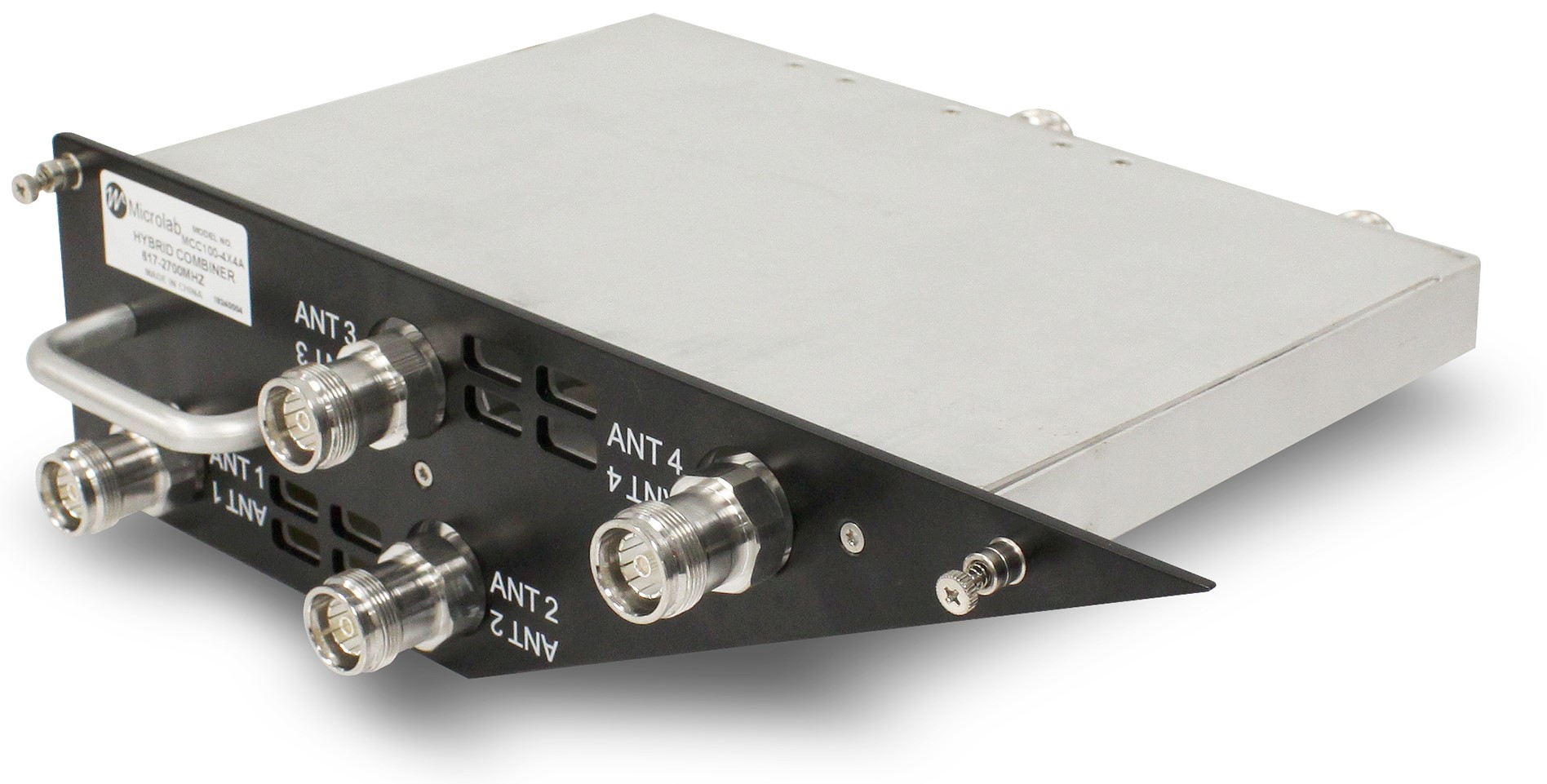

| MCC100-4x4A | 617 - 2,700 MHz, Standard, 4.3-10 | Datasheet |
| MCC100-4x4B | 617 - 3,800 MHz, CBRS Expansion Support, 4.3-10 | |
| MCC100-4x4C | 617 - 5,925 MHz, LTE-LAA Expansion Support , 4.3-10 | |
| MCC200-4x4A | 617 - 2700 MHz, Standard, 4.3-10, IP67 | Datasheet |
| MCC200-4x4B | 617 - 3,800 MHz, CBRS Expansion Support, 4.3-10, IP67 | |
| MCC200-4x4C | 617 - 5,925 MHz, LTE-LAA Expansion Support , 4.3-10, IP67 | |
| Rack and Peripherals | ||
| Part | Description | |
|---|---|---|
| MCC100 | 19” Subrack for up to 8 Crossband Cards, 6RU - Required | Datasheet |
| MCC100-100 | “Through” Card for Single Radio Input, 4.3-10 - Optional | |
| MCC100H | 19” Subrack for upto 2 Hybrid Cards, 2RU - Required | Datasheet |
| MCC200 | 19” Subrack for up to 8 Crossband Cards, 6RU - Required | Datasheet |
| MCC200-100 | “Through” Card for Single Radio Input, 4.3-10 - Optional | |
| MCC200H | 19” Subrack for upto 2 Hybrid Cards, 2.5RU - Required | Datasheet |
| For Wall Mount | |
| Wall Mount Enclosure | |
| Side Mount Enclosure | |
