2m 0.141 Cable DC-6GHz 100W -1 64dBc 4.3-10(m)-4.3-10(m) Indo
Allow Partial Shipments

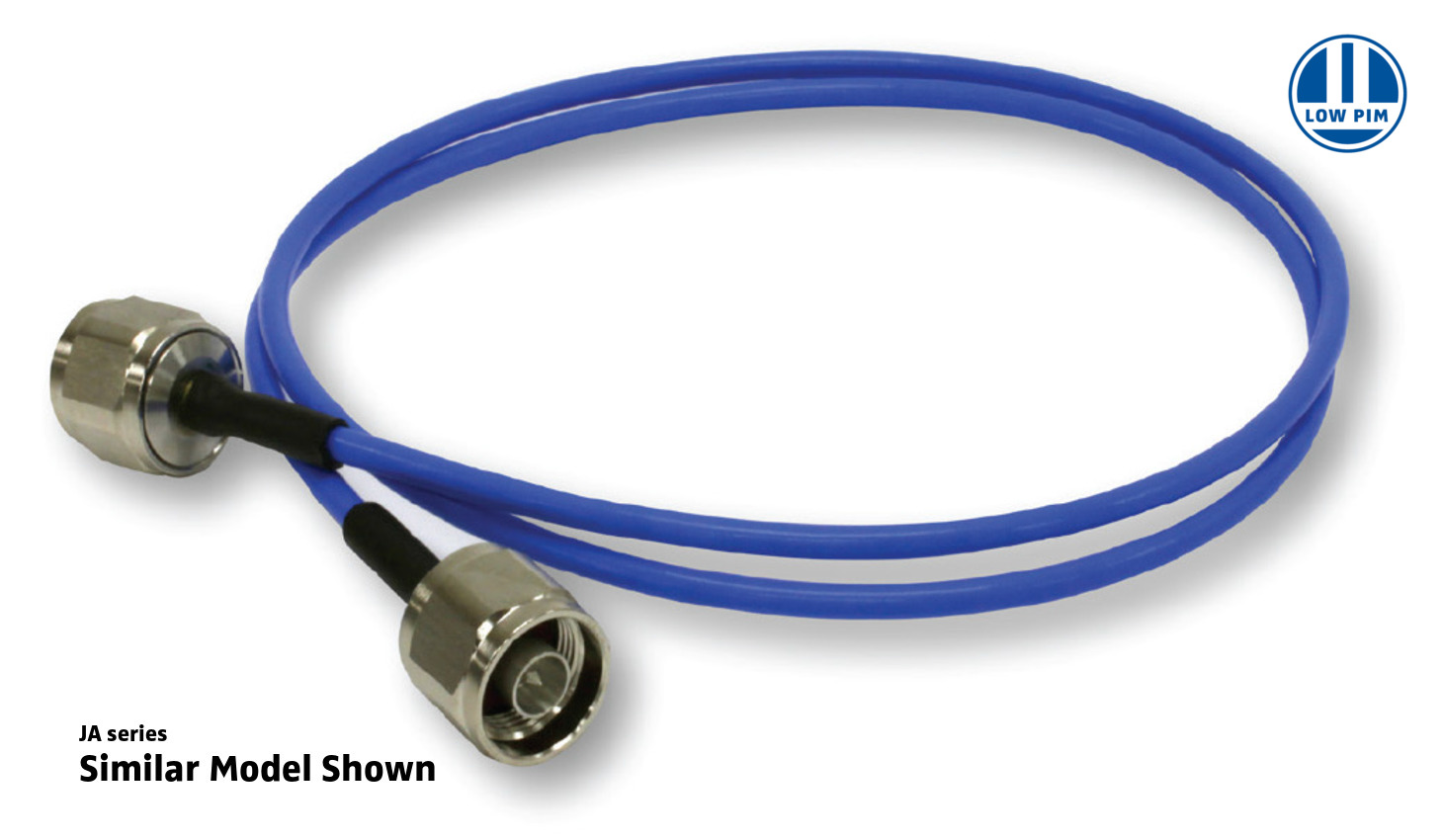

Microlab Model JA series, Coaxial Jumper Cables are built for reliability and consistent extremely low PIM performance. Designed for use in all systems where low PIM and very good R.F. and mechanical performance is critical. Using controlled manufacture, low PIM cable and trimetal plating the connectors ensures good intermodulation performance.
All cables are fully interchangeable with connectors made to the MIL-C-39012 specification.
- Ultra Low PIM
- High Average Power Rating
- Minimal RF Insertion Loss
- Excellent VSWR
- Rugged, High Reliability
- 4.3-10, 7-16, or N Type Connectors
- Plenum rated Class CMP
- RoHS compliant
|Frequency:||DC to 6,000 MHz|
|PIM:||<-158 dBc; <-164 typ. (+43dBm x2, at 1800 MHz)|
|Connectors:||4.3/10(m) to 4.3/10(m)|
