Dual Triplexer, 617-960/1695-2690/3400-4200MHz, 250W, -161dBc 4.3-10, Rackmount

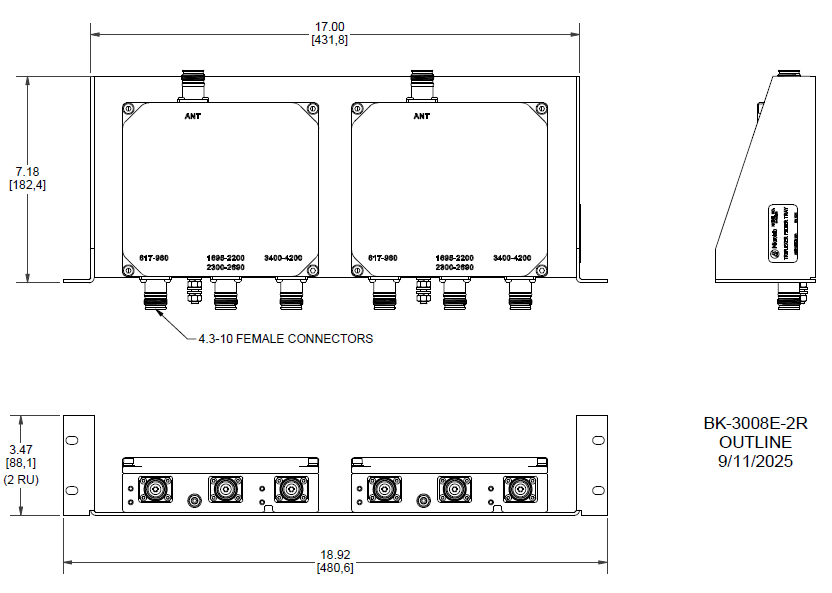

BK-3008E-2R
Please Register or call for more information
Microlab BK-3008E triplexer allows combination and splitting of signals in 617-960 MHz, 1695-2200/2300-2690 MHz and 3400-4200 MHz wireless bands. It allows efficient combining or splitting of the standard cellular bands and shared bands like CBRS and C-Band for use in Small Cell or D-RAN. To minimize band inter-reaction, the inputs are well isolated and have minimal insertion
loss over their respective frequency bands. Attention to mechanical design ensures guaranteed low passive intermodulation. Dual mounted configuration for 2×2 MIMO applications is available as BK-3008EW
loss over their respective frequency bands. Attention to mechanical design ensures guaranteed low passive intermodulation. Dual mounted configuration for 2×2 MIMO applications is available as BK-3008EW
- Multi-band combiner for carrier aggregation of licensed low and mid-bands
- 46 dB Input Isolation
- 250 W per port
- Guaranteed Low PIM
- Minimal RF Insertion Loss
- 4.3-10 Connectors
- Salt Fog Rated
- RoHS compliant
| Type: | Dual Rackmount |
| Frequency Bands |
Port 1: 617 – 960 MHz Port 2: 1695 – 2200 MHz, 2300 – 2690 MHz Port 3: 3400 – 4200 MHz |
| PIM | < -161 dBc (-118 dBm) |
| Power | 250 W avg./port, 3 kW pk |
| Return Loss | 20 dB typ., 18 dB min. (All Ports) |
| Isolation | 46 dB typ., 43 dB min. |
| Insertion Loss | 0.5 dB max. (All paths) |
| Impedance | 50 Ω nominal |
| Group Delay | 4.4 ns typ. |
| DC Pass | 3 A max (All Ports) |
| Lightning Protection | ±5 kA, 8/20 µs |
| Temperature | -40° to +65°C |
| Environment | IP67, 30 days Salt Fog Tested, ASTM B117 Compliant |
| Connectors | 4.3-10 (f), Flanged Triplate |
| Ground Protection | M6 screw |
| Housing Finish | Painted |
| Mounting | Bracket Included |
| Weight: | 10.4 (4.8) |
