Modular POI – MCC Series

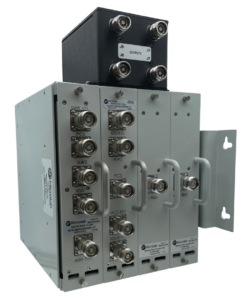

Microlab’s MCC Series POI is a Passive Modular Carrier Combiner for Neutral Host and Single Carrier D-RAN Architectures. It helps combine RAN remote heads for RF distribution. It has been designed to provide up to 4 Operators SISO configurations for 2 sectors OR up to 4 Operator MIMO for 1 sector. The MCC allows many configurations to support multi-carrier and multi-band Neutral Host MIMO or SISO applications. The design has been optimized for low-loss in a modular enclosure that is compatible with standard 19” Racks. It is passively cooled, so no external power or fans are required.

MCC Series Modular POI Catalog
MCC Design Pack – iBwave
MCC Series Application Guide

Modular Filter Cards

Product No. Description

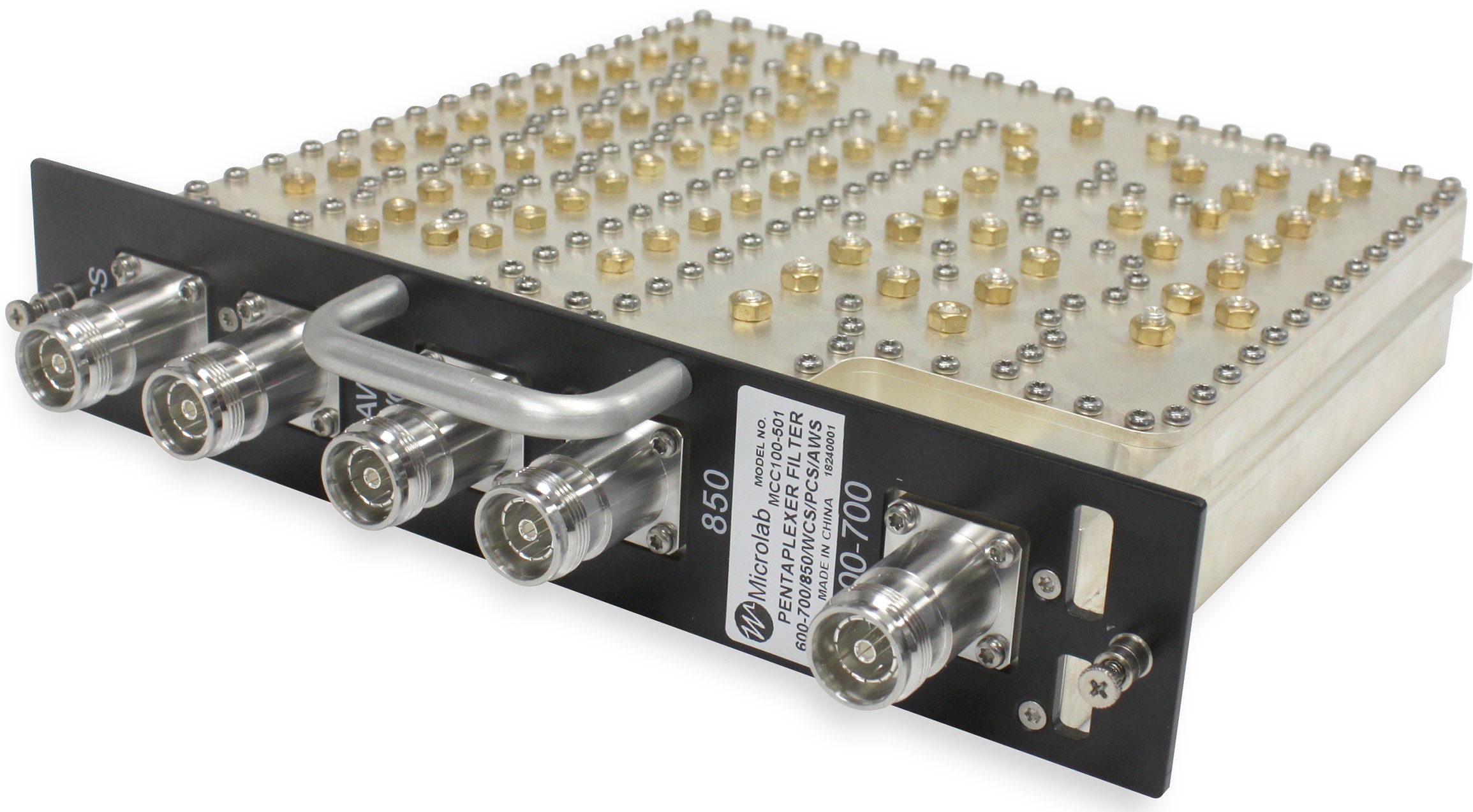

MCC200-503 Pentaplexer 600-700/850/PCS/AWS/5GNR n77, 4.3-10 IP67 Datasheet

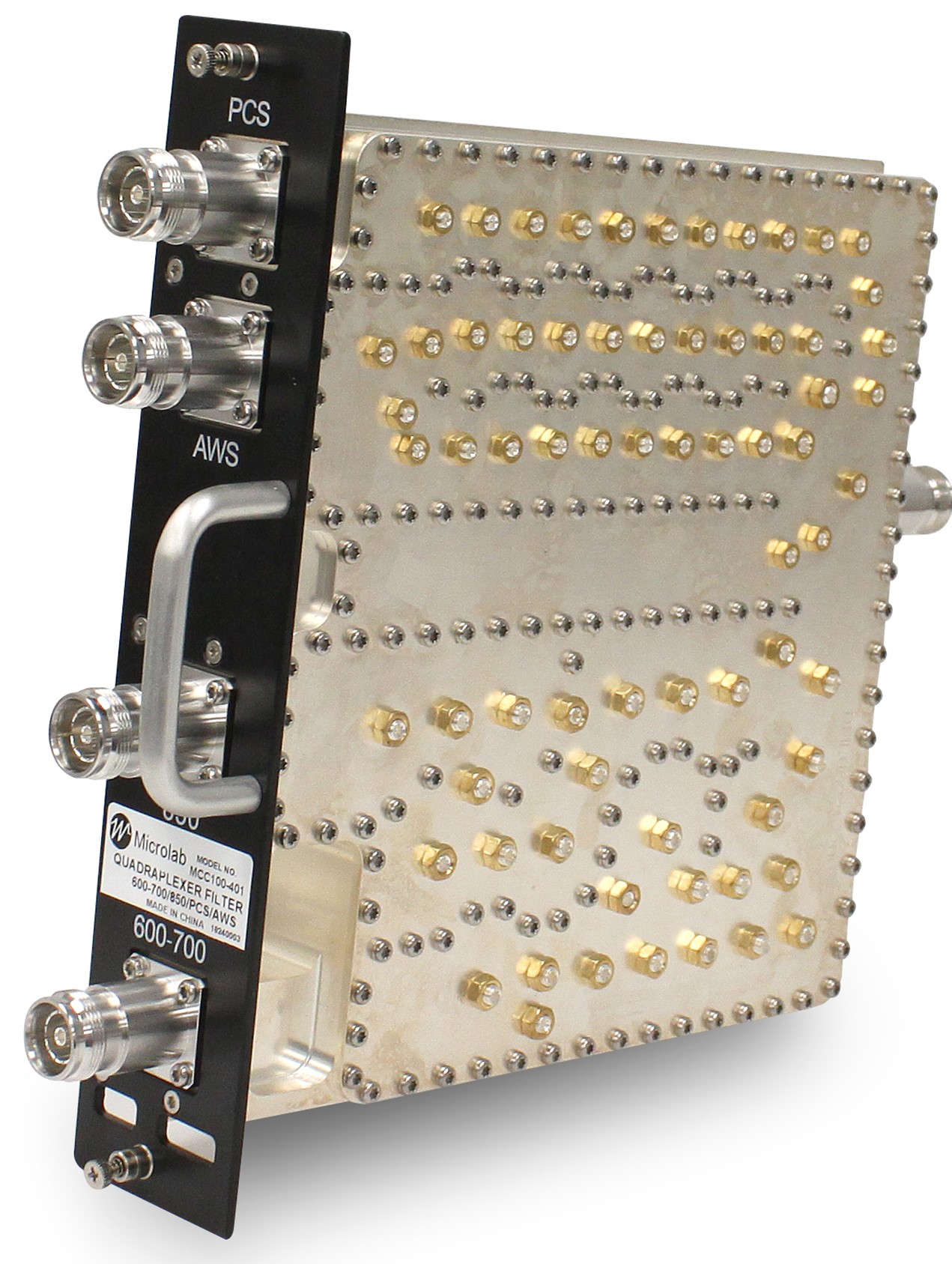

MCC200-502 Pentaplexer 600-850/PCS/AWS/WCS-BRS/5GNR n77, 4.3-10 IP67 Datasheet

Modular Hybrid Combiners

Product No. Description

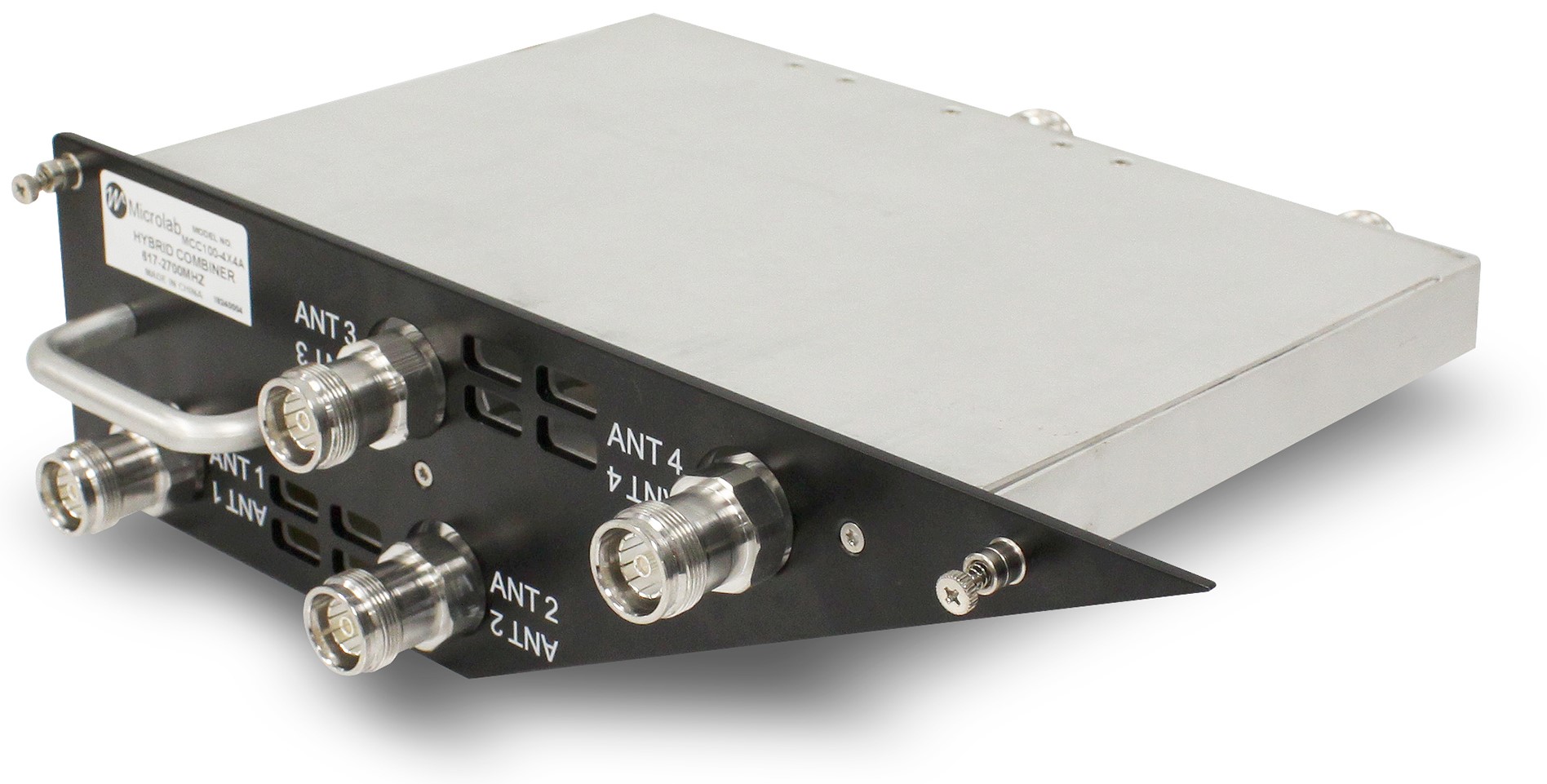

CM-141E Hybrid Combiner 4×4 617-5925MHz 100W -161dBc 4.3-10 IP67 Datasheet
CM-141E-2R Dual Hybrid Combiner Tray 4X4 617-5925MHz 100W -161dBc 4.3-10 Datasheet
CM-141E-4R Quad Hybrid Combiner Tray 4X4 617-5925MHz 100W -161dBc 4.3-10 Datasheet

Rack and Peripherals

Product No. Description
MCC200-SRC-00 Modular Wall Mount 4-Slot Sub-Rack Only Datasheet
MCC200-SRC-01 Modular Wall Mount 4-Slots Sub-Rack with 1x Integrated Hybrid Combiner Datasheet
MCC200-SRC-02 Modular Wall Mount 4-Slots Sub-Rack with 2x Integrated Hybrid Combiner Datasheet
MCC200 Modular Filter Card Sub-Rack 8-slots 6RU Datasheet
MCC200-100 “Through” Card for Single Radio Input, 4.3-10 – Optional Datasheet
MCC200-A03 Modular Faceplate for MCC200 Filter Card Slot Datasheet
MCC200-500-BKT Modular Filter Mounting Kit
