Public Safety

Public Safety communications worldwide are becoming increasingly important to ensure that first responders communicate reliably during emergencies for the protection and preservation of life and property. Public Safety agencies like the National Fire Protection Association (NFPA) and the International Fire Code (IFC) have created safety in-building communication requirements and best practices. Local municipalities and authorities at different government levels in the U.S. are now mandating these safety codes for new and existing buildings and facilities.

There are many challenges faced by Public Safety networks. Their coverage and capacity are limited by buildings’ physical characteristics, interoperability with other wireless networks, mobile radio technology used (e.g., FMN, OpenSky, TETRA and APCO P25), and overall Passive Intermodulation (PIM) performance. Microlab offers a wide variety of reliable RF passive components suited for DAS, Wi-Fi and Small Cell deployments. They are ideal for enterprise and public solutions supporting all major commercial wireless and public safety bands including UHF/VHF & 700/800 MHz. Our trusted products help provide full coverage and increase capacity across independent and/or coexistent mobile radio and cellular networks.

See the Public Safety Brochure here.

Microlab Public Safety portfolio of RF components share unique capabilities in the area of broadband frequency coverage from 80 to 2700 MHz, combined with minimal loss and very low PIM. These include:

Click on a link below to view available products by category.

Resistive Attenuators
ModelDescription
AM-01E1dB Resistive Atten DC-3GHz-�2W 4.3-10 n/a PIM indoor
AM-02E2dB Resistive Atten DC-3GHz-�2W 4.3-10 n/a PIM indoor
AM-03E3dB Resistive Atten DC-3GHz-�2W 4.3-10 n/a PIM indoor
AM-03F3dB Resistive Atten DC-3GHz-�2W SMA n/a PIM indoor
AM-03N3dB Resistive Atten DC-3GHz-�2W Type N n/a PIM indoor
AM-10F10dB Resistive Atten DC-3GHz-�2W SMA n/a PIM indoor
AM-10N10dB Resistive Atten DC-3GHz-�2W Type N n/a PIM indoor
AM-20F20dB Resistive Atten DC-3GHz-�2W SMA n/a PIM indoor
AM-20N20dB Resistive Atten DC-3GHz-�2W Type N n/a PIM indoor
AM-30F30dB Resistive Atten DC-3GHz-�2W SMA n/a PIM indoor
AM-30N30dB Resistive Atten DC-3GHz-�2W Type N n/a PIM indoor
AN-03N3dB Resistive Atten DC-3GHz-�5W Type N n/a PIM indoor
AN-06N6dB Resistive Atten DC-3GHz-�5W Type N n/a PIM indoor
AN-10N10dB Resistive Atten DC-3GHz-�5W Type N n/a PIM indoor
AN-20N20dB Resistive Atten DC-3GHz-�5W Type N n/a PIM indoor
AN-30N30dB Resistive Atten DC-3GHz-�5W Type N n/a PIM indoor
AP-03N3dB Resistive Atten DC-3GHz-�10W Type N n/a PIM indoor
AP-06N6dB Resistive Atten DC-3GHz-�10W Type N n/a PIM indoor
AP-10N10dB Resistive Atten DC-3GHz-�10W Type N n/a PIM indoor
AP-20N20dB Resistive Atten DC-3GHz-�10W Type N n/a PIM indoor
AP-30N30dB Resistive Atten DC-3GHz-�10W Type N n/a PIM indoor
AQ-03N3dB Resistive Atten DC-3GHz-�25W Type N n/a PIM indoor
AQ-06N6dB Resistive Atten DC-3GHz-�25W Type N n/a PIM indoor
AQ-10N10dB Resistive Atten DC-3GHz-�25W Type N n/a PIM indoor
AQ-20N20dB Resistive Atten DC-3GHz-�25W Type N n/a PIM indoor
AQ-30N30dB Resistive Atten DC-3GHz-�25W Type N n/a PIM indoor
AR-03N3dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-06E6dB Resistive Atten DC-3GHz-�50W 4.3-10 n/a PIM indoor
AR-06N6dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-10E10dB Resistive Atten DC-3GHz-�50W 4.3-10 n/a PIM indoor
AR-10N10dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-15E15dB Resistive Atten DC-3GHz-�50W 4.3-10 n/a PIM indoor
AR-20E20dB Resistive Atten DC-3GHz-�50W 4.3-10 n/a PIM indoor
AR-20N20dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-30E30dB Resistive Atten DC-3GHz-�50W 4.3-10 n/a PIM indoor
AR-30N30dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-R06N6dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-R10N10dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-R15N15dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-R20N20dB Resistive Atten DC-3GHz-�50W Type N n/a PIM indoor
AR-R30N30dB, Alternate Atten-�DC-3 GHz, 50W, N (M-F)
AS-10D10dB Resistive Atten DC-3GHz-�100W 7-16 n/a PIM indoor
AS-10N10dB Resistive Atten DC-3GHz-�100W Type N n/a PIM indoor
AS-15D15dB Resistive Atten DC-3GHz-�100W 7-16 n/a PIM indoor
AS-15N15dB Resistive Atten DC-3GHz-�100W Type N n/a PIM indoor
AS-20D20dB Resistive Atten DC-3GHz-�100W 7-16 n/a PIM indoor
AS-20N20dB Resistive Atten DC-3GHz-�100W Type N n/a PIM indoor
AS-30D30dB Resistive Atten DC-3GHz-�100W 7-16 n/a PIM indoor
AS-30N30dB Resistive Atten DC-3GHz-�100W Type N n/a PIM indoor
AT-01E1dB Resistive Atten DC - 6GHz-�2W 4.3-10 n/a PIM indoor
AT-02E2dB Resistive Atten DC - 6GHz-�2W 4.3-10 n/a PIM indoor
AT-03E3dB Resistive Atten DC - 6GHz-�2W 4.3-10 n/a PIM indoor
AT-04E4dB Resistive Atten DC - 6GHz-�2W 4.3-10 n/a PIM indoor
AT-05E5dB Resistive Atten DC - 6GHz-�2W 4.3-10 n/a PIM indoor
AT-07E7dB Resistive Atten DC - 6GHz-�2W 4.3-10 n/a PIM indoor
AT-08E8dB Resistive Atten DC - 6GHz-�2W 4.3-10 n/a PIM indoor
AT-10E10dB Resistive Atten DC -6GHz-�2W 4.3-10 n/a PIM indoor
AT-11E11dB Resistive Atten DC -6GHz-�2W 4.3-10 n/a PIM indoor
AT-12E12dB Resistive Atten DC -6GHz-�2W 4.3-10 n/a PIM indoor
AT-13E13dB Resistive Atten DC -6GHz-�2W 4.3-10 n/a PIM indoor
AT-20E20dB Resistive Atten DC -6GHz-�2W 4.3-10 n/a PIM indoor
AT-30E30dB Resistive Atten DC -6GHz-�2W 4.3-10 n/a PIM indoor
AU-10D10dB Resistive Atten DC-3GHz-�200W 7-16 n/a PIM indoor
AU-10N10dB Resistive Atten DC-3GHz-�200W Type N n/a PIM indoor
AU-20D20dB Resistive Atten DC-3GHz-�200W 7-16 n/a PIM indoor
AU-20N20dB Resistive Atten DC-3GHz-�200W Type N n/a PIM indoor
AU-30D30dB Resistive Atten DC-3GHz-�200W 7-16 n/a PIM indoor
AU-30N30dB Resistive Atten DC-3GHz-�200W Type N n/a PIM indoor
AV-60FVariable Resistive Atten-�DC-3GHz 2W SMA n/a PIM indoor

Back to top

Diplexer
ModelDescription
BK-04NDiplexer Public Safety LMR-�50-220/400-960MHz 50W/100W
BK-12DDiplexer Low/High 80-960/-�1695-2700MHz 120W 7-16
BK-12DPDiplexer Low/High 80-960/-�1695-2700MHz 120W 7-16
BK-12EDiplexer Low/High 80-960/-�1695-2700MHz 120W 4.3-10
BK-12EPDiplexer Low/High 80-960/-�1695-2700MHz 120W 4.3-10
BK-12NDiplexer Low/High 80-960/-�1695-2700MHz 120W Type N
BK-24DDiplexer Public Safety/Cell-�80-520/694-2700 50W/120W 7-16
BK-24DPDiplexer Public Safety/Cell-�80-520/694-2700 50W/120W 7-16
BK-24EDiplexer Public Safety/Cell-�80-520/694-2700 50W/120W4.3-10
BK-24EPDiplexer Public Safety/Cell80-520/694-270050W/120W4.3-10
BK-24NDiplexer Public Safety/Cell-�80-520/694-2700 50W/120W N
BK-24NPDiplexer Public Safety/Cell-�80-520/694-2700 50W/120W N
BK-261EDiplexer LTE/LTE-LAA 80-2690/3-�300-5851MHz 5W/50W 4.3-10
BK-261EPDiplexer Lic/CBRS+B43+Unlic-�5W/50W 4.3-10
BK-261NDiplexer Lic/CBRS+B43+Unlic-�80-2690/3300-5851MHz 5W/50W N
BK-26NDiplexer LTE/LTE-LAA 80-2690/-�3300-5850MHz 5W/50W Type N
BK-62NDiplexer Cellular/WiFi-�80-2170/2400-5850MHz 10W/50W N
BK-67NDiplexer Low/BRS 80-2180/2490--�2690MHz 5W/150W Type N
BK-68DDiplexer Low/BRS 80-2170/2400--�2690MHz 200W/60W 7-16
BK-68NDiplexer Low/BRS 80-2170/2400--�2690MHz 200W/60W Type N
BK-68NPDiplexer Low/BRS 80-2170/2400--�2690MHz 200W/60W Type N

Back to top

Quadraplexer
ModelDescription
BK-962DQuadraplexer 700/850/PCS/AWS1--�3 250W 7-16
BK-962EQuadraplexer 700/850/PCS/AWS1--�3 250W 4.3-10

Back to top

Cavity
ModelDescription
BL-18PSNDuplexer 800 Public Safety-�60W Type N
BL-20NDuplexer 700 Low ABC Upper AC-�60W N
BL-26PSNDuplexer 700 Public Safety60W-�Type N161dBc(-118dBm) PIM IP67

Back to top

Hybrid Couplers
ModelDescription

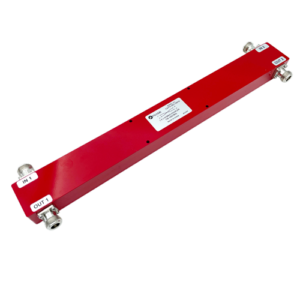

CA-93NHybrid Coupler 2x2-�128-1000 MHz, N-F, Pub Safety

Back to top

Directional Couplers
ModelDescription
CK-751D15dB Low PIM Coupler-�350-2700MHz 300W 7-16
CK-751E15dB Low PIM Coupler-�350-2700MHz 300W 4.3-10
CK-751N15dB Low PIM Coupler-�350-2700MHz 300W Type N
CK-761D6dB Low PIM Coupler-�350-2700MHz 300W 7-16
CK-761E6dB Low PIM Coupler-�350-2700MHz 300W 4.3-10
CK-761N6dB Low PIM Coupler-�350-2700MHz 300W Type N
CK-771D10dB Low PIM Coupler-�350-2700MHz 300W 7-16
CK-771E10dB Low PIM Coupler-�350-2700MHz 300W 4.3-10
CK-771N10dB Low PIM Coupler-�350-2700MHz 300W Type N

Back to top

Hybrid Matrices
ModelDescription
CM-14D4x4 Hybrid Matrix-�350-5925MHz 200W 7-16
CM-14E4x4 Hybrid Matrix-�350-5925MHz 200W 4.3-10
CM-14N4x4 Hybrid Matrix-�350-5925MHz 200W Type N
CM-99N4x4 Hybrid Matrix-�380-960 MHz 100W Type N

Back to top

Reactive Splitters
ModelDescription
D2-08FD2-way Reactive Splitter-�380-2700MHz 500W 7-16
D2-08FE2-way Reactive Splitter-�380-2700MHz 500W 4.3-10
D2-08FN2-way Reactive Splitter-�380-2700MHz 500W Type N
D2-41FN2-way Reactive Splitter-�138-960MHz 100W Type N
D2-41FNP2-way Reactive Splitter-�138-960MHz 100W Type N
D3-08FD3-way Reactive Splitter-�380-2700MHz 500W 7-16
D3-08FE3-way Reactive Splitter-�380-2700MHz 500W 4.3-10
D3-08FN3-way Reactive Splitter-�380-2700MHz 500W Type N
D3-41FN3-way Reactive Splitter-�138-960MHz 100W Type N
D3-41FNP3-way Reactive Splitter-�138-960MHz 100W Type N
D4-08FD4-way Reactive Splitter-�380-2700MHz 500W 7-16
D4-08FE4-way Reactive Splitter-�380-2700MHz 500W 4.3-10
D4-08FN4-way Reactive Splitter-�380-2700MHz 500W Type N
D4-41FN4-way Reactive Splitter-�138-960MHz 100W Type N
D4-41FNP4-way Reactive Splitter-�138-960MHz 100W Type N

Back to top

Wilkinson Splitters
ModelDescription
D2-49FN2-way Wilkinson Splitter-�350-5850MHz 10W Type N
D4-49FF4-way Wilkinson Splitter-�350-5850MHz 10W SMA
D4-49FN4-way Wilkinson Splitter-�350-5850MHz 10W Type N

Back to top

Tappers
ModelDescription
DN-01FN20dB (100:1) Tapper-�137-960 MHz 500W Type N
DN-04FE20dB (100:1) Tapper-�350-5930MHz 500W 4.3-10
DN-04FN20dB (100:1) Tapper-�350-5930MHz 500W Type N
DN-14FD30dB (1000:1) Tapper-�350-5930MHz 500W 7-16
DN-14FE30dB (1000:1) Tapper-�350-5930MHz 500W 4.3-10
DN-14FN30dB (1000:1) Tapper-�350-5930MHz 500W Type N
DN-31FN3.0dB (2:1) Tapper-�137-960 MHz 500W Type N
DN-34FD3.0dB (2:1) Tapper-�350-5930MHz 500W 7-16
DN-34FE3.0dB (2:1) Tapper-�350-5930MHz 500W 4.3-10
DN-34FN3.0dB (2:1) Tapper-�350-5930MHz 500W Type N
DN-44FE4.8dB (3:1) Tapper-�350-5930MHz 500W 4.3-10
DN-44FN4.8dB (3:1) Tapper-�350-5930MHz 500W Type N
DN-51FN6.0dB (4:1) Tapper-�137-960 MHz 500W Type N
DN-54FD6.0dB (4:1) Tapper-�350-5930MHz 500W 7-16
DN-54FE6.0dB (4:1) Tapper-�350-5930MHz 500W 4.3-10
DN-54FN6.0dB (4:1) Tapper-�350-5930MHz 500W Type N
DN-64FD8.0dB (6:1) Tapper-�350-5930MHz 500W 7-16
DN-64FE8.0dB (6:1) Tapper-�350-5930MHz 500W 4.3-10
DN-64FN8.0dB (6:1) Tapper-�350-5930MHz 500W Type N
DN-71FN10dB (10:1) Tapper-�137-960 MHz 500W Type N
DN-74FD10dB (10:1) Tapper-�350-5930MHz 500W 7-16
DN-74FN10dB (10:1) Tapper-�350-5930MHz 500W Type N
DN-84FD13dB (20:1) Tapper-�350-5930MHz 500W 7-16
DN-84FE13dB (20:1) Tapper-�350-5930MHz 500W 4.3-10
DN-84FN13dB (20:1) Tapper-�350-5930MHz 500W Type N
DN-91FN15dB (30:1) Tapper-�137-960 MHz 500W Type N
DN-94FD15dB (30:1) Tapper-�350-5930MHz 500W 7-16
DN-94FE15dB (30:1) Tapper-�350-5930MHz 500W 4.3-10
DN-94FN15dB (30:1) Tapper-�350-5930MHz 500W Type N

Back to top

DC Block
ModelDescription
HR-20DDC Block Inner-�250-2700MHz 500W/3kV 7-16m-f
HR-20NDC Block Inner-�250-2700MHz 500W/3kV Type Nm-f
HR-22NDC Block Inner/Outer-�380-2700MHz 250W/3kV Type N
HR-25NDC Block Inner-�380-2700MHz 250W/3kV Type Nm-f
HR-28DDC Block Inner/Outer-�380-2700MHz 250W/3kV 7-16(m-f)

Back to top

Low Pass Filters
ModelDescription
LA-38NLow Pass Filter-�136-174MHz N-F, 200W, ROHS

Back to top

Passive Components
ModelDescription
PP-220FE20 port Patch Panel-�DC - 6GHz 100W 4.3-10

Back to top

Resistive Terminations
ModelDescription
TA-1FFTermination Resistive-�DC-2.5GHz 1W SMA
TA-1MFTermination Resistive-�DC-2.5GHz 1W SMA
TA-2FDTermination Resistive-�DC-3GHz 2W 7-16 n/a PIM IP67
TA-2FNTermination Resistive-�DC-3GHz 2W Type N n/a PIM IP67
TA-2MDTermination Resistive-�DC-6GHz 2W 7-16 n/a PIM IP67
TA-2MHETermination Resistive-�DC-6GHz 2W 4.3-10 n/a PIM IP65
TA-5MNTermination Resistive-�DC-18GHz 2W Type N
TB-10MNTermination Resistive-�DC-3GHz 25W Type N
TB-10MNPTermination Resistive-�DC-4GHz 25W Type N
TB-5FDTermination Resistive-�DC-2.5GHz 10W 7-16
TB-5FNTermination Resistive-�DC-5.5GHz 10W Type N
TB-5MDTermination Resistive-�DC-2.5GHz 10W 7-16
TB-5MNTermination Resistive-�DC-5.5GHz 10W Type N
TB-6MNTermination Resistive-�DC-2.5GHz 10W Type N
TB-70MDTermination Resistive-�DC-4GHz 50W 7-16
TB-70MNTermination Resistive-�DC-4GHz 50W Type N
TB-75MDTermination Resistive-�DC-4GHz 100W 7-16
TB-75MNTermination Resistive-�DC-4GHz 100W Type N
TB-80MDTermination Resistive-�DC-4GHz 150W 7-16
TB-90MDTermination Resistive-�DC-4GHz 250W 7-16
TB-90MNTermination Resistive-�DC-4GHz 250W Type N

Back to top

Low Pim Terminations
ModelDescription
TK-205MDTermination Low PIM-�350-2700MHz 5W 7-16
TK-205METermination Low PIM-�350-2700MHz 5W 4.3-10
TK-210MDTermination Low PIM-�350-2700MHz 10W 7-16
TK-210METermination Low PIM-�350-2700MHz 10W 4.3-10
TK-225MDTermination Low PIM-�350-2700MHz 25W 7-16
TK-225METermination Low PIM-�350-2700MHz 25W 4.3-10
TK-25FDTermination Low PIM-�350-2700MHz 60W 7-16
TK-25FETermination Low PIM-�350-2700MHz 60W 4.3-10
TK-25MDTermination Low PIM-�350-2700MHz 60W 7-16
TK-25METermination Low PIM-�350-2700MHz 60W 4.3-10
TK-25MNCABLE LOAD, 60W, 400-2700MHz,N-M, PORTABLE W/HANDLE
TK-27FDTermination Low PIM-�350-2700MHz 100W 7-16
TK-27FETermination Low PIM-�350-2700MHz 100W 4.3-10
TK-27FNTermination Low PIM-�350-2700MHz 100W Type N
TK-27MDTermination Low PIM-�350-2700MHz 100W 7-16
TK-27METermination Low PIM-�350-2700MHz 100W 4.3-10
TK-27MNTermination Low PIM-�350-2700MHz 100W Type N
TK-28FDTermination Low PIM-�350-2700MHz 200W 7-16
TK-28FETermination Low PIM-�350-2700MHz 200W 4.3-10
TK-28FNTermination Low PIM-�350-2700MHz 200W Type N
TK-28MDTermination Low PIM-�350-2700MHz 200W 7-16

Back to top

Antennas In-Building
ModelDescription
YA-17NFOmni SISO-�380-470+698-960MHz 60W Type N

Back to top
