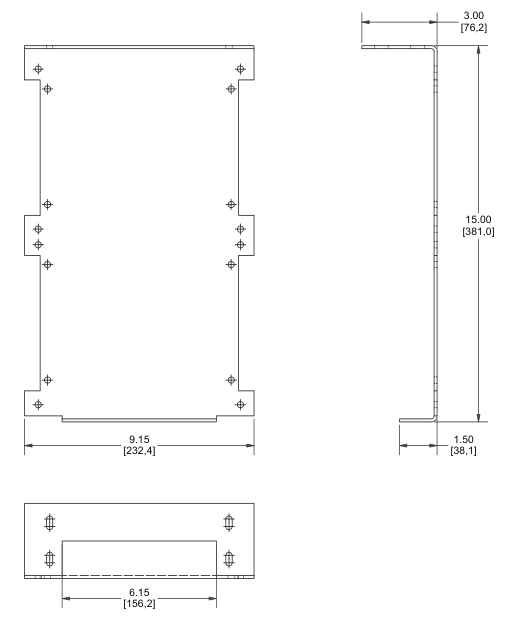

Ladder Rack Bracket for D3-76 or D4-76 Splitter Series, Expansion Bracket
BRK-LDR-D3-76FE-002
Please Register or call for more information
Microlab has designed a series of brackets to securely attach multiple tappers or splitters to ladder racks, cable trays, and other structures used in ceiling applications. Our new mounting solutions simplify installation, save time and effort, and maintain mechanical integrity.
The main bracket is required for all installations. Optional side brackets can be added as needed to increase the number of splitters supported in your application. Passives sold separately.
Requires BRK-LDR-D3-76FE-001
- Compatible with DN-x4 Series Tappers, and In-line Splitters: D2-76FE, D3-76FE, and D4-76FE
- Quick installation saves time and effort
- Rugged aluminum build for long-lasting use
- Reduce cable stress and prevent damage
| Main Bracket Model | Configuration Holds | Qty of Main Brackets Needed | Qty of Side Brackets Needed | Side Bracket Part Number |
|---|---|---|---|---|
|
BRK-LDR-D3-76FE-001 (view instructions) |
(4) D3-76FE | 1 | 0 | N/A |
| (6) D3-76FE | 1 | 1 | BRK-LDR-D3-76FE-002 | |
| (8) D3-76FE | 1 | 2 | BRK-LDR-D3-76FE-002 | |
| (4) D4-76FE | 1 | 0 | N/A | |
| (6) D4-76FE | 1 | 1 | BRK-LDR-D3-76FE-002 | |
| (8) D4-76FE | 1 | 2 | BRK-LDR-D3-76FE-002 |
