Hybrid Coupler, 2×2, 128-1000MHz, 2×2, -153dBc, N(f), IP65, Painted Red, Public Safety
CA-PS-2X2-196FN
Please Register or call for more information

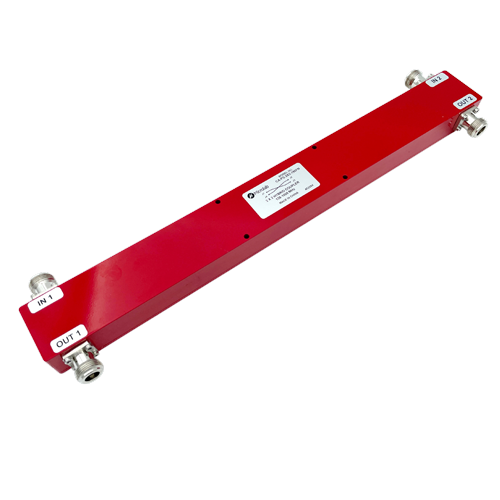

The CA-PS-2×2-196FN hybrid combiner ensures reliable signal combining of VHF, UHF, TETRA, and FirstNet signals across 128-1000MHz for in-building DAS. Its electrical design delivers high isolation, low loss, low PIM of -153dBc, and high reliability for mission-critical applications. It features N-Type connectors, an IP65 rating, and is painted red for easy identification in the network.
- Combines VHF/UHF Public Safety and Tetra 128 – 1000 MHz
- High Isolation, Low VSWR and Loss
- 300 W Input Average Power Rating
- High Reliability
- RoHS compliant
- Convenient connector spacing
| Specification | Detail |
|---|---|
| Frequency | 128 to 1,000 MHz |
| Connectors: | N(f) |
| Coupling Value: | 3.1 ± 1.2 dB |
| VSWR: | <1.3:1 |
| PIM | -153 dBc (-110 dBm) min. (Test with 2x 700MHz, +43 dBm tones @ ambient) |
| Input Power | 300W avg. |
| Isolation | 23 dB min. |
| Impedance | 50Ω nom. |
| Temperature | -35°C to +65°C |
| Environment | IP65 |
| Housing Finish | Painted |
| Weight lb(kg) | 1.65 (0.76) |

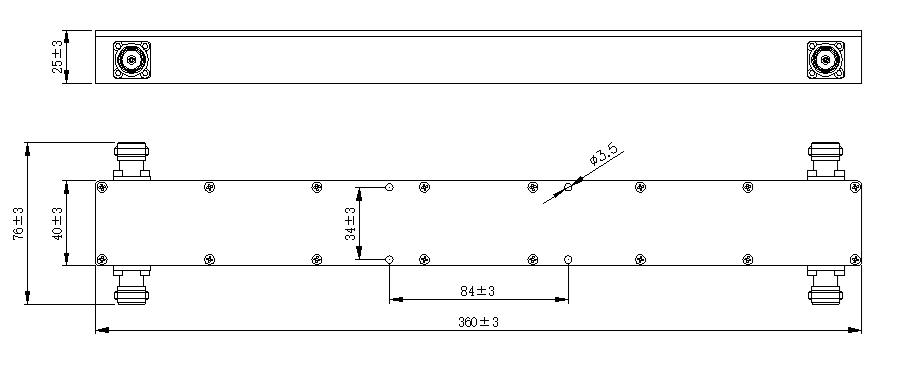

| Dimensions | 360x76x25 mm 14.1 x 2.99 x 0.98 in |
