UWB Twin Hybrid Combiner 2×1, 617-5925MHz, 25W, -161dBc, 4.3-10, IP67
CT-625E
Please Register or call for more information
Download Datasheet
Microlab CT-625E is a Twin Ultra Wideband, High Isolation Hybrid Coupler in a single housing. It combines two wireless sources from 617 to 5925 MHz, to a single antenna feed or distribution cable with minimum intermodulation.
This twin model can allow for either a 2×2 MIMO feed or a 2-sector SISO feed. This product is designed for indoor and outdoor environments and reduces the need for space requirements due to the lack of external cable loads, as two output ports are internally terminated.
- Wide-band coupler to enable 5G network deployments with carrier aggregation
- Twin hybrid
- Guaranteed low PIM
- High isolation and low VSWR
- 25 Watt per input
- IP67 rated
- RoHS compliant
| Frequency | 617 – 5925 MHz |
|---|---|
| Power/Input | 25 W |
| PIM | <-161 dBc (-118 dBm) (tested with 2x +43 dBm @ 25°C) |
| Impedance | 50 Ω nom. |
| Housing | Light gray paint |
| Connectors | 4.3-10 (f), Triplate |
| Environment | -40°C to +65°C, IP67 |

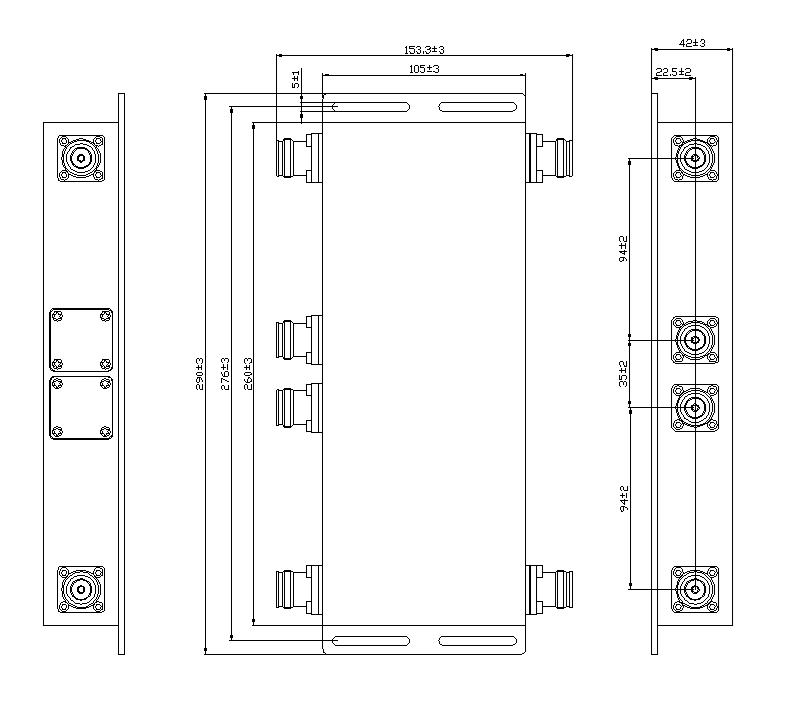

| Dimensions | 11.42″ x 4.1″ x 1.65″ (includes mount length) |
| Weight | 5.82 lbs [2.64 kg] |
| Frequency Range (MHz) | Coupling & Loss (dB) | Isolation (dB) | VSWR (max.) |
|---|---|---|---|
| 617-2700 | 3.2 ± 1.3 | >23 | 1.25:1 |
| 2700-5925 | >20 | 1.35:1 |
