DCC, 12×4 Combiner Box, 880-960/1710-1880/1920-2170/2300-2400&2496-2690, 75W, 4.3-10(f), 4RU Rackmount
DCC602-C103
Please Register or call for more information
The Microlab DCC602-C103 DAS Carrier Conditioner is a 4RU, 19″ rack-mountable tray that separates and combines signals in bands from 698 to 2700 MHz. It accepts 3 sets of 4 bands (B8, B3, B1 and N40/N41) and distributes the combined signal across 4 output ports.

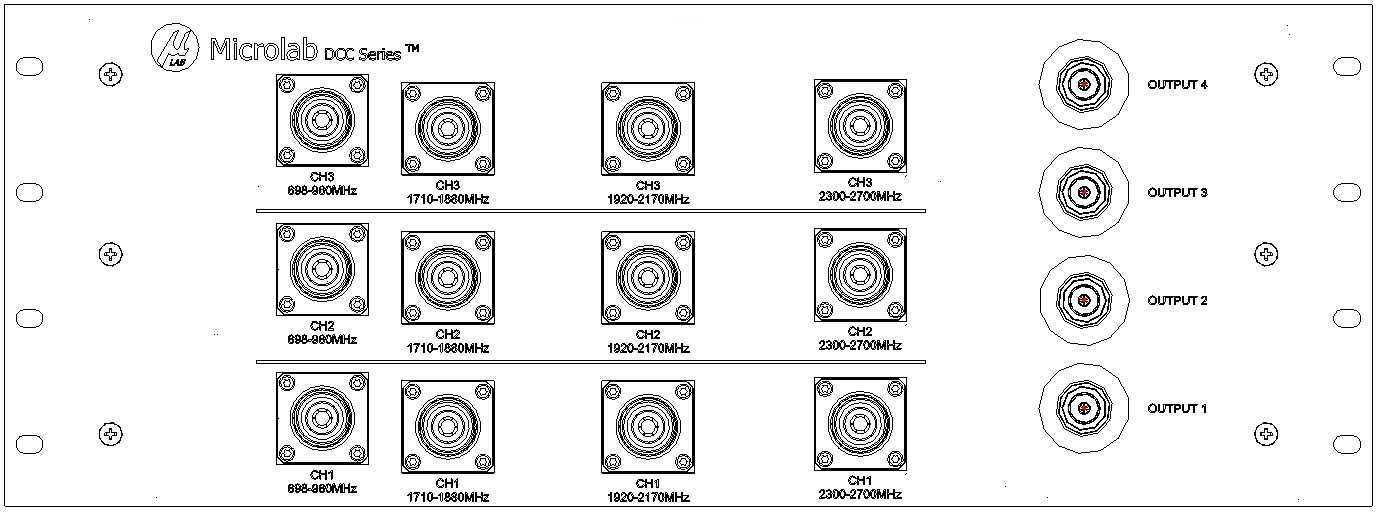

All input and output ports are on the front panel for easy installation and cable management. Low PIM performance of -153 dBc and 4.3-10 (f) connectors make it well suited for multi-operator DAS head-end installations.
- 12×4 combiner in a 4RU, 19″ rack-mountable tray
- Combines bands from 698 to 2700 MHz: B8, B3, B1 and N40/N41
- 3 sets of 4-band inputs combined to 4 common output ports
- 75 W input power rating per port
- Low PIM, -153 dBc
- 50 dB interband isolation
- All input and output ports on the front panel for easy installation and cable management
- 4.3-10 (f) connectors
- RoHS compliant
| DCC602-C103 Specifications | |
|---|---|
| Configuration | 12×4 Combiner (3 x 4-band inputs, 4 outputs) |
| Frequency Range | 698-960 MHz 1710-1880 MHz 1920-2170 MHz 2300-2700 MHz |
| Input Power | 75 W / input port |
| Insertion Loss | 6.5 dB ±1.0 dB, 698-960 MHz 6.7 dB ±1.0 dB, 1710-1880 MHz 6.7 dB ±1.0 dB, 1920-2170 MHz 7.0 dB ±1.2 dB, 2300-2700 MHz |
| Isolation | 50 dB (interband) 23 dB (same band) |
| Return Loss | 14 dB min. |
| PIM | -153 dBc min. (2 tones @ +43 dBm) |
| Impedance | 50 Ω nominal |
| Connectors | 4.3-10 Type (f), input/output front |
| Housing | 4RU, 19″ Rackmount, Aluminum Enclosure |
| Temperature | -10°C to +55°C, indoor |

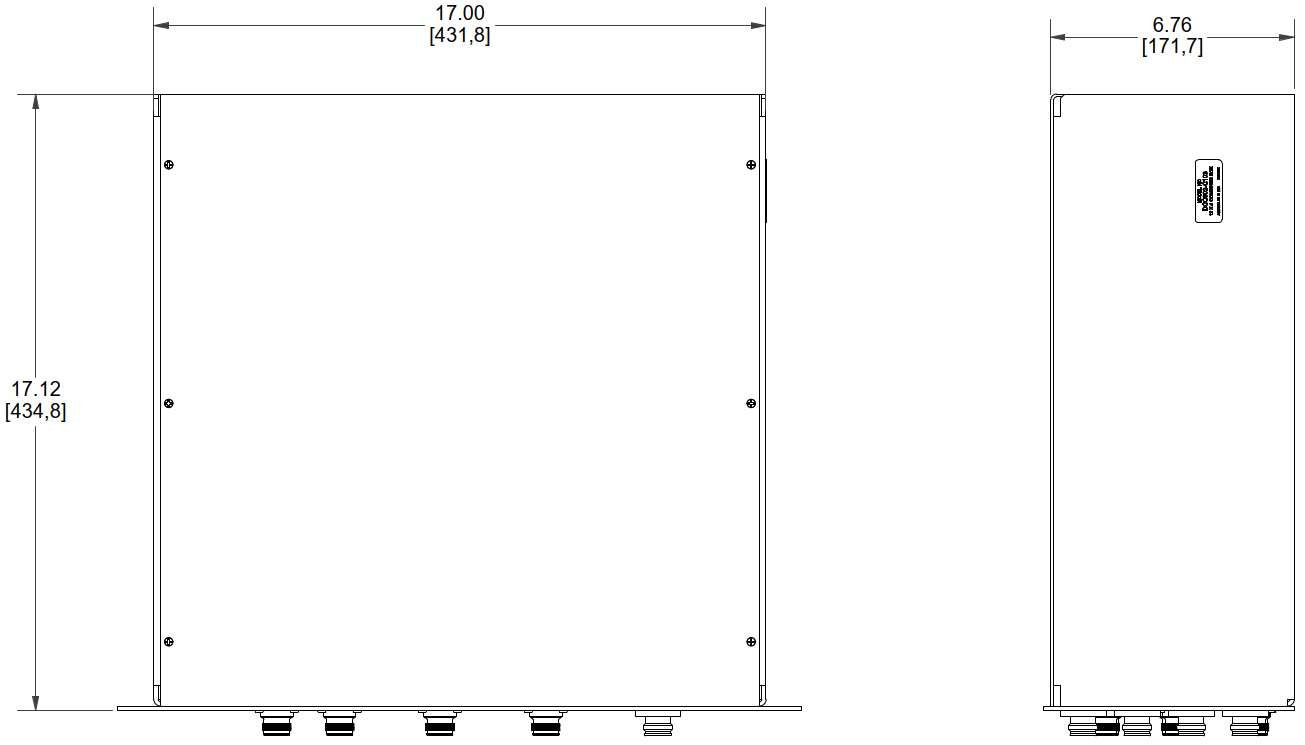

| Dimensions | 19″ W x 17.12″ D x 6.97″ H (4RU) |
| Weight | 44.5 lbs (20.2 kg) |
