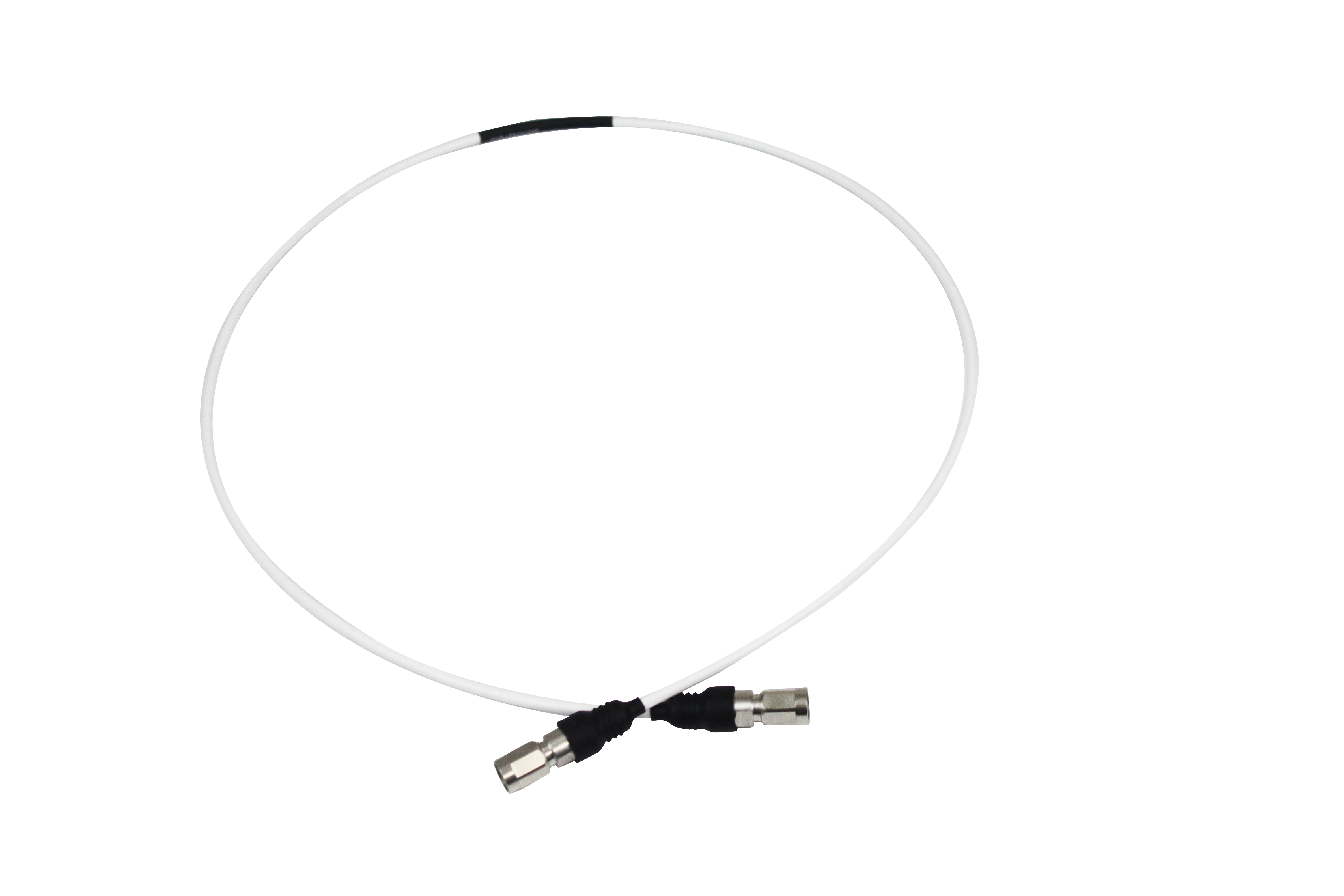

2m 0.141 Cable DC-6GHz 200W -161dBc typ. NEX10(m)-4.3-10(m) IP67, JA Express
JA-20-MT-ME
Please Register or call for more information
Microlab JA series coaxial cable assemblies are developed for reliability and guaranteed low PIM performance. These cables are designed for D-RAN and Small Cell deployments, where low loss and cable flexibility are crucial. JA cables are ideal for interconnections between radios, antennas, and RF passive components.
If you need additional cable assemblies, our sales team is available to help. Microlab, a division of RF Industries, specializes in creating custom cable assemblies and connectors that are tailored to your specifications, such as type of cable, connectors, and length, with quick turnaround times.
- Ultra-wideband for CBRS & LTE-LAA applications
- Guaranteed Low PIM
- 300W Average Power Rating
- Minimal RF Insertion Loss
- Rugged & High Reliability
- Plenum rated
- RoHS compliant
| Cable Assembly Configuration | |
|---|---|
| Connector 1: | NEX10(m) |
| Connector 2: | 4.3-10(m) |
| Cable Length: | 2 meter (20 decimeters) |
| Electrical Specifications | |
| Frequency: | DC to 6 GHz |
| Impedance: | 50Ω nominal |
| Shielding: | 90 dB min. |
| RoHS: | Compliant |
| PIM: | <-161 dBc typ., <-158dBc min. (Test with 2x tones @+43dBm) |
| VSWR: | <1.15:1 (DC -3 GHz) <1.25:1 (3 – 6 GHz) |
| Power: | 100 W avg, 3kW pk. |
| Velocity of Propagation: | 70.8% |
| Environment: | -40°C to +125°C |
| Attenuation | |
| Frequency | Loss/m(dB) |
| 380 MHz | <0.3 |
| 960 MHz | <0.5 |
| 1700 MHz | <0.6 |
| 2700 MHz | <0.8 |
| 3450 MHz | <0.9 |
| 6000 MHz | <1.0 |
| Connector Specifications | |
| Body/Nut: | Brass, Tri-metal plated |
| Center Conductor: | Brass, Silver plated |
| Dielectrics: | PTFE |
| Gaskets/O-ring: | Silicon Rubber |
| Cable Specifications | |
| Inner Conductor: | Silver plated copper (0.037”) |
| Dielectric: | PTFE (0.118”) |
| Outer Conductor: | Tinned Soaked Copper Braid (0.141”) |
| Jacket: | Extruded FEP, CMP (0.163”) |
| Static Bend Radius: | 0.4” |
