Tappers

Tappers

Tappers, also known as Signal Samplers, operate similarly to Directional Couplers but without the directivity. Tappers have the benefit of easily realizable broad bandwidths, are virtually indestructible and generally are lower priced. Catalog tappers are frequently used in distributed antenna systems, DAS, and are available in output splits from 2:1 to 1000:1 with either N or 7-16 mm DIN connectors.

Products Available

Datasheet Description
DN-01FN Tappers, 137 - 960 MHz, 100:1, 20 dB, N-type
DN-04FC Tappers, 350 - 5,850 MHz, 100:1, 20 dB, 4.1-9.5
DN-04FD Tappers, 350 - 5,850 MHz, 100:1, 20 dB, 7-16
DN-04FE Tappers, 350 - 5,850 MHz, 100:1, 20 dB, 4.3-10
DN-04FN Tappers, 350 - 5,850 MHz, 100:1, 20 dB, N-type
DN-10F Tappers, 694 - 6,000 MHz,1000:1 to 10:1, 10 dB, SMA (m-f)
DN-14FC Tappers, 350 - 5,850 MHz, 1000:1, 30 dB, 4.1-9.5
DN-14FD Tappers, 350 - 5,850 MHz, 1000:1, 30 dB, 7-16
DN-14FE Tappers, 350 - 5,850 MHz, 100:1, 30 dB, 4.3-10
DN-14FN Tappers, 350 - 5,850 MHz, 1000:1, 30 dB, N-type
DN-20F Tappers, 694 - 6,000 MHz,1000:1 to 10:1, 20 dB, SMA (m-f)
DN-30F Tappers, 694 - 6,000 MHz,1000:1 to 10:1, 30 dB, SMA (m-f)
DN-31FN Tappers, 137 - 960 MHz, 2:1, 3 dB, N-type
DN-34FC Tappers, 350 - 5,850 MHz, 2:1, 3 dB, 4.1-9.5

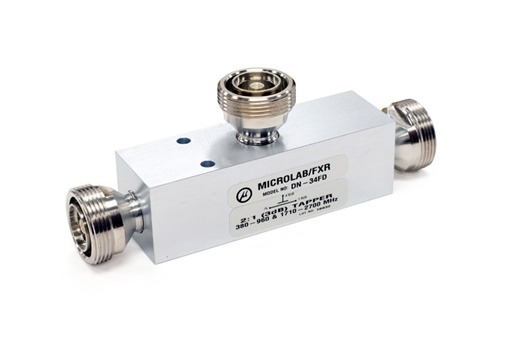

DN-34FD Tappers, 350 - 5,850 MHz, 2:1, 3 dB, 7-16
DN-34FE Tappers, 350 - 5,850 MHz, 100:1, 3 dB, 4.3-10
DN-34FN Tappers, 350 - 5,850 MHz, 2:1, 3 dB, N-type
DN-44FC Tappers, 350 - 5,850 MHz, 3:1, 4.8 dB, 4.1-9.5
DN-44FD Tappers, 350 - 5,850 MHz, 3:1, 4.8 dB, 7-16
DN-44FE Tappers, 350 - 5,850 MHz, 100:1, 4.8 dB, 4.3-10
DN-44FN Tappers, 350 - 5,850 MHz, 3:1, 4.8 dB, N-type
DN-51FN Tappers, 137 - 960 MHz, 4:1, 6 dB, N-type
DN-54FC Tappers, 350 - 5,850 MHz, 4:1, 6 dB, 4.1-9.5
DN-54FD Tappers, 350 - 5,850 MHz, 4:1, 6 dB, 7-16
DN-54FE Tappers, 350 - 5,850 MHz, 100:1, 6 dB, 4.3-10
DN-54FN Tappers, 350 - 5,850MHz, 4:1, 6 dB, N-type
DN-64FC Tappers, 350 - 5,850 MHz, 6:1, 8 dB, 4.1-9.5
DN-64FD Tappers, 350 - 5,850 MHz, 6:1, 8 dB, 7-16
DN-64FE Tappers, 350 - 5,850 MHz, 100:1, 8 dB, 4.3-10
DN-64FN Tappers, 350 - 5,850 MHz, 6:1, 8 dB, N-type
DN-71FN Tappers, 137 - 960 MHz, 10:1, 10 dB, N-type
DN-74FC Tappers, 350 - 5,850 MHz, 10:1, 10 dB, 4.1-9.5
DN-74FD Tappers, 350 - 5,850 MHz, 10:1, 10 dB, 7-16
DN-74FE Tappers, 350 - 5,850 MHz, 100:1, 10 dB, 4.3-10
DN-74FN Tappers, 350 - 5,850 MHz, 10:1, 10 dB, N-type
DN-84FC Tappers, 350 - 5,850 MHz, 20:1, 13 dB, 4.1-9.5
DN-84FD Tappers, 350 - 5,850 MHz, 20:1, 13 dB, 7-16
DN-84FE Tappers, 350 - 5,850 MHz, 100:1, 13 dB, 4.3-10
DN-84FN Tappers, 350 - 5,850 MHz, 20:1, 13 dB, N-type
DN-89DQ QMA Tappers, 698-2700 MHz, 20 dB, 7-16 (m-f)
DN-89NQ QMA Tappers, 698-2700 MHz, 20 dB, N-type (m-f)
DN-91FN Tappers, 137 - 960 MHz, 30:1, 15 dB, N-type
DN-94FC Tappers, 350 - 5,850 MHz, 30:1, 15 dB, 4.1-9.5
DN-94FD Tappers, 350 - 5,850 MHz, 30:1, 15 dB, 7-16
DN-94FE Tappers, 350 - 5,850 MHz, 100:1, 15 dB, 4.3-10
DN-94FN Tappers, 350 - 5,850 MHz, 30:1, 15 dB, N-type
DN-99DQ QMA Tappers, 698-2700 MHz, 40 dB, N-type (m-f)
DN-99DQR QMA Tappers, 698-2700 MHz, 40 dB, 7-16 (m-f)
DN-99NQ QMA Tappers, 698-2700 MHz, 40 dB, N-type (m-f)
