Pentaplexer filter module, 600–850/PCS/AWS/WCS-BRS/5G NR n77, 100W per input, -161 dBc PIM, IP67, 4.3-10
MCC300-502
Please Register or call for more information
The MCC300-502 is a five-band filter module at the heart of the MCC300 Series™ modular POI for neutral host D-RAN and in-building or outdoor DAS. It combines 600–850 MHz, PCS, AWS (AWS-1 and AWS-3), WCS-BRS and 5G NR n77 onto a single output, and the n77 port covers C-Band, 3.45 GHz, CBRS and future n77 applications.
Each input handles 100W average, and insertion loss is as low as 0.40 dB, so more power reaches the antenna. Two modules fit in a single rack unit, with front-facing radio inputs and rear outputs that connect to the CM-680E-1R, CM-680E-2R or CM-141E-1R hybrid combiners. The passively cooled, IP67-rated housing works in 19″ racks, on walls or on poles.
- 100W average per input
- Isolation >40 dB; return loss >20 dB
- Guaranteed low PIM: <-161 dBc (2x +43 dBm tones)
- Two modules per 1RU; front-facing radio inputs
- Passively cooled; mounts in 19″ racks, on walls or on poles
- IP67 rated, -25°C to +65°C
- Aluminum housing, powder coated RAL 7035 light gray
- Brackets, hybrid combiners and jumpers sold separately
Five bands: 600–850 (617–894 MHz), PCS (1850–2000 MHz), AWS (1695–1780 and 2110–2200 MHz), WCS-BRS (2305–2700 MHz), 5G NR n77 (3300–4200 MHz)
Insertion Loss:0.40 dB max. (all bands), 0.45 dB max. (PCS, AWS)
Return Loss: >20 dB
PIM: <-161 dbc (-118 dBm), (Test with 2x +43dBm tones)
Power/Input: 100W
Impedance: 50Ω

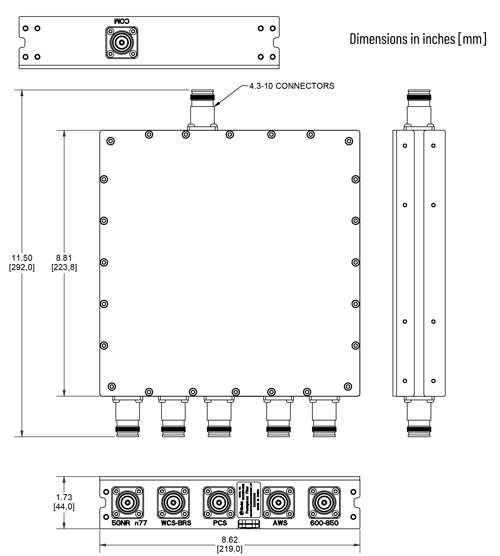

Dimensions 8.62 x 8.81 x 1.73 inches [219.0 x 223.8 x 44.0 mm]
